Bitumen DPC Roll Pakistan – Complete Guide for Waterproofing & Damp Proofing

1. Introduction to Bitumen DPC Roll

Waterproofing and damp-proofing are essential for building longevity in Pakistan’s climate. Bitumen DPC (Damp Proof Course) Rolls are widely used in residential, commercial, and industrial constructions to prevent rising damp, moisture penetration, and structural damage.

Robust Construction Chemicals offers high-quality bitumen DPC rolls manufactured to withstand Pakistan’s diverse climate—from the humid coasts of Karachi to the hot summers of Lahore and rainy monsoon areas of Islamabad.

Bitumen DPC Roll is a flexible, polymer-modified membrane that creates a barrier against moisture, protecting foundations, walls, and structural elements from water damage.

2. What is Bitumen DPC Roll?

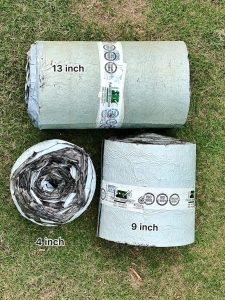

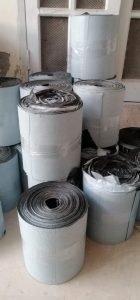

A Bitumen DPC Roll is a sheet of bitumen-based waterproofing membrane used to form a damp proof course in masonry or concrete walls.

Key Features:

Moisture Barrier: Prevents water rising from the ground into walls.
Polymer Modified: Enhances flexibility and durability.
Easy to Install: Can be applied on horizontal and vertical surfaces.
UV and Weather Resistant: Suitable for open foundations exposed to sunlight.

3. Importance of Bitumen DPC Roll in Pakistan

A. Prevents Rising Damp

Groundwater and moisture can rise through walls via capillary action.
DPC rolls act as a physical barrier, preventing damp patches, mold, and paint peeling.

B. Protects Structural Integrity

Moisture can weaken concrete and brick over time.
Bitumen DPC rolls preserve load-bearing walls and prevent foundation damage.

C. Reduces Maintenance Costs

Prevents frequent repairs due to moisture-related damage.
Enhances longevity of paint, plaster, and finishes.

D. Improves Indoor Comfort

Moisture-free walls reduce humidity inside buildings.
Prevents mold formation and improves air quality.

4. Types of Bitumen DPC Roll

A. APP (Atactic Polypropylene) Modified Bitumen Roll

Heat-resistant and flexible.
Ideal for hot climates like Lahore and Karachi.
Provides long-lasting waterproofing.

B. SBS (Styrene-Butadiene-Styrene) Modified Bitumen Roll

Superior flexibility and crack-bridging ability.
Suitable for areas with thermal fluctuations, such as Islamabad and northern Pakistan.

C. Self-Adhesive Bitumen DPC Roll

Ready-to-use and easy to install without heat.
Ideal for small-scale residential projects.

D. Torch-On Bitumen DPC Roll

Requires heat for bonding.
Provides strong adhesion and seamless waterproofing.

5. Benefits of Using Bitumen DPC Roll

Moisture Protection: Prevents rising damp and wall moisture.
Long-Lasting: Durable up to 20+ years.
Crack Resistance: Flexible sheets prevent minor wall cracks from affecting waterproofing.
UV & Weather Resistance: Protects from sunlight, rain, and humidity.
Easy Application: Suitable for horizontal and vertical surfaces.
Cost-Effective: Reduces frequent repair and maintenance costs.
Versatile Use: Can be applied on foundations, plinths, walls, and terraces.

6. Applications of Bitumen DPC Roll

Residential Buildings: Plinth, basement, ground floor, and terraces.
Commercial Buildings: Offices, hotels, and shopping malls.
Industrial Structures: Factories, warehouses, and workshops.
Bridges and Flyovers: Protects concrete from moisture penetration.
Water Tanks: Prevents leakage and seepage from below-grade tanks.

7. Surface Preparation Before Installation

Proper preparation is key for effective waterproofing:

Clean the Surface: Remove dirt, dust, oil, or loose debris.
Repair Cracks: Fill gaps using Robust Power Plug or compatible cementitious mortar.
Level Surface: Ensure smooth, even substrate for better adhesion.
Primer Application: Apply a bitumen primer to enhance bonding.
Dry Surface: Ensure no standing water or moisture is present before applying the DPC roll.

8. Installation Process of Bitumen DPC Roll

A. Torch-On Method

Heat the roll with a propane torch.
Bond the sheet to the substrate while heating evenly.
Ensure 10–15 cm overlap at joints.

B. Self-Adhesive Method

Peel off protective film and apply adhesive side on clean surface.
Press firmly to remove air bubbles.

C. Placement

Horizontal application: Foundation plinths and floor slabs.
Vertical application: Walls above foundation.
Overlap edges for complete waterproofing coverage.

D. Finishing

Seal edges and overlaps with additional adhesive or bitumen.
Inspect for air pockets or wrinkles and smoothen them.

9. Technical Specifications

Property	Specification
Thickness	2–4 mm
Tensile Strength	≥ 600 N/50 mm
Elongation	≥ 25%
Temperature Resistance	-20°C to 120°C
Water Absorption	≤ 0.1%
Service Life	15–20 years
UV Resistance	Excellent
Crack Bridging	Up to 2 mm

10. Regional Recommendations in Pakistan

Lahore & Punjab: SBS or APP modified rolls for heat and monsoon protection.
Karachi & Coastal Areas: PVC-modified rolls to resist humidity and saline air.
Islamabad & Northern Areas: SBS rolls for thermal expansion resistance.
Balochistan & Sindh Arid Regions: UV-resistant APP rolls for high heat.

11. Common Installation Mistakes

Applying on wet surfaces.
Poor surface preparation leading to weak adhesion.
Insufficient overlap at seams.
Walking on freshly applied DPC before curing.
Ignoring drainage and slope of the foundation.

12. Maintenance and Longevity

Annual inspection for leaks or damaged areas.
Clean surface to remove debris or moss.
Repair minor punctures or tears immediately.
Apply maintenance coat every 5–8 years to restore UV protection.
Ensure proper drainage to prevent water stagnation.

13. Integration with Other Robust Products

Robust Power Plug: Repair cracks before DPC installation.
RC-7 Roof Coating: Combine with DPC for terrace waterproofing.
Foil Bitumen Membrane: Additional insulation and waterproofing.
XPS Sheets: For heatproofing combined with damp-proofing.

14. Case Studies

Residential House, Lahore

APP modified DPC roll applied on plinth and basement.
No damp issues after 10 years.

Industrial Warehouse, Karachi

PVC-modified DPC roll applied on foundation.
Withstood saline coastal conditions and heavy rainfall.

Commercial Office, Islamabad

SBS roll combined with RC-7 coating for terrace waterproofing.
Reduced energy costs and prevented moisture ingress.

Bitumen DPC Roll Pakistan – Advanced Professional Guide

19. Advanced Technical Advantages of Bitumen DPC Rolls

Bitumen DPC rolls provide more than just basic damp-proofing. High-quality rolls integrate advanced polymer technology, offering multiple layers of protection:

A. Seamless Moisture Barrier

High-quality DPC rolls create a continuous barrier against rising damp.
Prevents water from entering through capillaries in brick and concrete walls.
Especially effective in ground floors, plinths, and basements.

B. UV and Weather Resistance

Modified bitumen rolls withstand direct sunlight and high temperatures, crucial for regions like Lahore and Sindh.
Prevents cracking and degradation due to thermal expansion.

C. Flexibility and Crack Bridging

SBS or APP-modified rolls are highly flexible, allowing them to accommodate structural movement or minor foundation settlement.
Bridges minor cracks in masonry or concrete without compromising waterproofing.

D. Chemical Resistance

Resistant to salts, alkalies, and acidic soil conditions, making it suitable for industrial and coastal areas.

E. Durability and Longevity

Expected service life: 15–25 years.
Minimal maintenance reduces long-term repair costs.

20. Applications Across Various Sectors

Residential Buildings

Plinth, ground floor, and basements.
Terrace waterproofing with combined DPC roll and reflective coatings.
Protects interiors from mold, damp, and paint peeling.

Commercial Buildings

Offices, shopping malls, hotels, and hospitals.
DPC rolls combined with RC-7 or foil bitumen membranes improve durability and energy efficiency.

Industrial Facilities

Factories, warehouses, and chemical plants.
DPC rolls resist moisture, chemicals, and thermal stress.
Protects concrete slabs and steel reinforcement from corrosion.

Bridges and Flyovers

Prevents moisture ingress in expansion joints and foundations.
Enhances structural longevity under heavy traffic.

Water Tanks & Reservoirs

Horizontal DPC rolls prevent water seepage from foundations.
Maintains water quality by protecting against contamination.

21. Regional Considerations in Pakistan

Punjab & Lahore

SBS rolls recommended for hot summers and monsoon rains.
Reflective coatings can reduce indoor temperatures by 8–12°C.

Karachi & Coastal Areas

PVC or modified bitumen rolls prevent damage from high humidity and saline air.
Coastal conditions accelerate corrosion; polymer-modified rolls enhance resistance.

Islamabad & Northern Areas

SBS or APP rolls withstand thermal expansion and contraction.
Suitable for foundations with fluctuating temperature cycles.

Balochistan & Sindh Arid Regions

High UV exposure requires UV-resistant APP rolls.
Thermal protection ensures crack bridging and membrane longevity.

22. Surface Preparation – Advanced Guidelines

Proper surface preparation ensures maximum adhesion and performance:

Inspection of Substrate
- Check for cracks, uneven surfaces, and structural defects.
- Identify damp areas and potential water pooling spots.
Cleaning
- Remove dirt, dust, oil, and loose materials.
- Use pressure washing for heavy contamination.
Repairing Damages
- Fill cracks, gaps, and potholes with Robust Power Plug.
- Ensure foundation and plinth are structurally sound.
Leveling and Primer Application
- Smooth substrate for consistent membrane adhesion.
- Apply bitumen primer compatible with roll type.
Dry Surface Requirement
- Surface must be free of water to prevent adhesion failure.

23. Advanced Installation Techniques

Torch-On Method

Heat bitumen roll and bond directly to substrate.
Ensure even heating to prevent bubbling.
Overlap seams at 10–15 cm.

Self-Adhesive Method

Peel-off protective layer exposes adhesive side.
Press firmly to remove air pockets.

Fully Adhered Method

Spread adhesive evenly and roll sheet to avoid wrinkles.

Mechanically Fastened Method

Screws or fasteners stabilize PVC or TPO-modified DPC rolls.
Ideal for large industrial roofs and areas with strong wind exposure.

Seaming and Edge Sealing

Seal overlaps and edges with additional adhesive or torch bonding.
Ensure penetrations (pipes, conduits) are properly sealed.

24. Troubleshooting Common Issues

A. Bubbling or Wrinkling

Cause: Poor adhesion or trapped moisture.
Solution: Lift affected area, clean, and re-adhere with primer.

B. Joint Failure

Cause: Improper overlap or lack of sealant.
Solution: Reseal seams using compatible adhesive.

C. Punctures or Tears

Cause: Sharp tools, debris, or foot traffic.
Solution: Patch using the same membrane type.

D. Water Pooling

Cause: Poor slope or clogged drainage.
Solution: Improve roof slope, clean drains, or add additional drainage points.

25. Compatibility with Other Construction Materials

Concrete Foundations: Ensure proper curing and repair cracks.
Brick Walls: Provide uniform surface for adhesion.
Metal Surfaces: Apply primer to accommodate thermal expansion.
Green Roof Systems: Use root-resistant rolls for planting areas.
Insulation Integration: Combine DPC rolls with XPS sheets for thermal and moisture protection.

26. Maintenance & Longevity

Routine Maintenance

Inspect annually, especially after rain or storms.
Check seams, joints, and penetrations for damage.

Cleaning

Remove debris, moss, or algae.
Avoid harsh chemicals that degrade bitumen.

Minor Repairs

Patch punctures and small tears immediately.
Use manufacturer-recommended products.

Preventive Measures

Limit foot traffic on fresh installation.
Apply protective coatings or walk pads on high-traffic areas.

27. Case Studies

Residential House, Lahore

SBS roll applied at foundation and basement plinth.
Roof remained moisture-free for 12 years.

Industrial Warehouse, Karachi

PVC-modified DPC roll applied on coastal foundation.
Resisted humidity and saline air for 15 years.

Commercial Office, Islamabad

SBS roll combined with RC-7 coating for terrace waterproofing.
Reduced energy costs and prevented water ingress.

Bridge Project, Punjab

Bitumen DPC roll applied on expansion joints.
Prevented water seepage and reinforced structural integrity.

28. Advanced Innovations in DPC Technology

A. Self-Healing Membranes

Polymer-based rolls seal minor punctures automatically.

B. Heat-Reflective DPC Rolls

Reduce surface temperature and improve energy efficiency.

C. Anti-Microbial & Root-Resistant Rolls

Prevent mold, algae, and root penetration on green roofs.

D. Reinforced DPC Rolls

Incorporate fiberglass or polyester for extra strength.
Suitable for high-traffic areas or industrial use.

35. Why Choose Bitumen DPC Roll for Waterproofing in Pakistan

Bitumen DPC rolls have become the preferred choice for waterproofing and damp-proofing in Pakistan due to their unmatched reliability, ease of installation, and long-term performance. In regions like Lahore, Karachi, Islamabad, and Faisalabad, the combination of high summer temperatures, heavy monsoon rainfall, and humidity can cause severe water damage to foundations, plinths, and walls. Installing a high-quality bitumen DPC roll forms a continuous barrier that prevents rising damp, seepage, and structural deterioration, ensuring that buildings remain dry, strong, and durable for decades. Unlike traditional cement plaster or chemical coatings, bitumen DPC rolls offer superior flexibility, crack bridging, and chemical resistance, making them ideal for modern construction practices.

36. Key Advantages of Bitumen DPC Roll

One of the biggest advantages of bitumen DPC roll is its versatility across different construction projects. It is equally effective on residential houses, high-rise commercial buildings, industrial warehouses, and government infrastructure projects. The flexible polymer-modified sheets adapt to the substrate, bridging minor cracks and ensuring that no moisture penetrates the walls. Another significant benefit is the energy efficiency it provides when used in combination with reflective coatings on terraces, reducing indoor heat absorption. Additionally, bitumen DPC rolls are resistant to soil salts, alkaline materials, and chemical pollutants, which is especially important for coastal areas and industrial zones. The durability of high-quality rolls ensures 15–25 years of protection with minimal maintenance, making them a cost-effective solution for long-term building preservation.

37. Applications of Bitumen DPC Roll Across Different Structures

Bitumen DPC rolls are designed to protect every part of a building prone to moisture intrusion.

Residential Buildings: Installed on plinths, basements, ground floors, and terraces, they prevent moisture from rising through walls, reducing dampness, paint peeling, and mold growth.
Commercial Buildings: In offices, malls, and hotels, DPC rolls protect structural integrity and reduce long-term maintenance costs. They also improve indoor air quality by preventing mold and humidity buildup.
Industrial Facilities: Factories and warehouses face chemical and thermal exposure. Bitumen DPC rolls shield concrete and masonry structures from chemical corrosion and moisture penetration.
Infrastructure Projects: Bridges, flyovers, and underpasses benefit from DPC rolls as they prevent water seepage into concrete structures, protecting steel reinforcement from rust and corrosion.
Water Tanks and Reservoirs: Horizontal DPC rolls act as a water barrier, preventing leakage and contamination, ensuring clean storage for both residential and industrial use.

38. Modern Innovations in Bitumen DPC Roll

The industry has evolved to meet the challenges of extreme weather, structural movement, and long-term durability.

SBS and APP Polymer-Modified Rolls: These rolls provide superior flexibility, UV resistance, and crack bridging, making them suitable for both hot and temperate climates.
Self-Adhesive DPC Rolls: These ready-to-use sheets eliminate the need for torch heating, making installation safer and faster.
Reinforced DPC Rolls: Integrated fiberglass or polyester layers increase tensile strength, making the rolls suitable for industrial floors and high-traffic areas.
Reflective Coating Integration: Reflective top layers on DPC rolls reduce roof temperatures and improve energy efficiency.
Eco-Friendly Rolls: TPO or PVC-modified rolls are recyclable, low in VOCs, and environmentally safe.

39. Step-by-Step Installation Guide

Proper installation is critical for maximum performance. The following steps ensure long-lasting protection:

Surface Cleaning: Remove dirt, dust, loose particles, grease, and oil. A clean surface ensures proper adhesion.
Repair Cracks and Uneven Surfaces: Use Robust Power Plug to seal cracks and level the foundation or plinth.
Primer Application: Apply a compatible bitumen primer on porous or rough surfaces to enhance bonding.
Laying the DPC Roll:
- Torch-On Method: Heat bitumen roll using a propane torch and bond it to the substrate.
- Self-Adhesive Method: Peel off backing film and press adhesive side onto surface.
Seaming and Overlaps: Ensure a minimum 10–15 cm overlap at joints. Apply extra adhesive or torch bonding to seal seams.
Edge Sealing: All corners, edges, and penetrations (pipes, conduits) must be sealed to prevent water ingress.
Inspection: Check for wrinkles, air pockets, or bubbles, and smoothen them to ensure a uniform barrier.

40. Maintenance Tips for Long-Term Performance

Even though bitumen DPC rolls are durable, routine maintenance ensures maximum effectiveness:

Annual Inspection: Check for damage after heavy rains or monsoons.
Cleaning: Remove debris, moss, and leaves to prevent water accumulation.
Minor Repairs: Patch small tears or punctures immediately using compatible materials.
Protective Measures: Apply maintenance coats every 5–8 years and use walk pads in high-traffic areas.
Drainage Maintenance: Ensure proper slope and clean roof drains to avoid water pooling.

41. Integration with Other Robust Construction Chemicals

For complete waterproofing solutions, DPC rolls can be integrated with other products from Robust Construction Chemicals:

RC-7 Roof Coating: Enhances terrace waterproofing and provides additional protection against seepage.
Foil Bitumen Membranes: Provides heat and moisture insulation for industrial and commercial structures.
XPS Insulation Sheets: Combines heatproofing with damp-proofing, ideal for roofs and exposed plinths.
Robust Power Plug: For repairing cracks and ensuring a smooth substrate before DPC installation.

42. Regional Recommendations in Pakistan

Lahore & Punjab: SBS rolls with reflective coating to combat heat and monsoon rains.
Karachi & Coastal Areas: PVC-modified rolls to resist humidity, saline air, and UV exposure.
Islamabad & Northern Areas: SBS or APP rolls for thermal expansion and contraction.
Balochistan & Sindh Arid Regions: UV-resistant APP rolls for extreme sun exposure and high temperatures.

43. Case Studies – Real-Life Applications

Residential House, Lahore

SBS roll applied on basement and plinth.
Resulted in zero dampness even after 12 years.

Industrial Warehouse, Karachi

PVC-modified DPC roll on coastal foundations.
Withstood high humidity and saline conditions for 15 years.

Commercial Office, Islamabad

SBS DPC roll combined with RC-7 coating for terrace protection.
Reduced moisture-related repairs and improved indoor comfort.

Bridge Project, Punjab

DPC rolls installed on expansion joints prevented water penetration and reinforced structural integrity.
